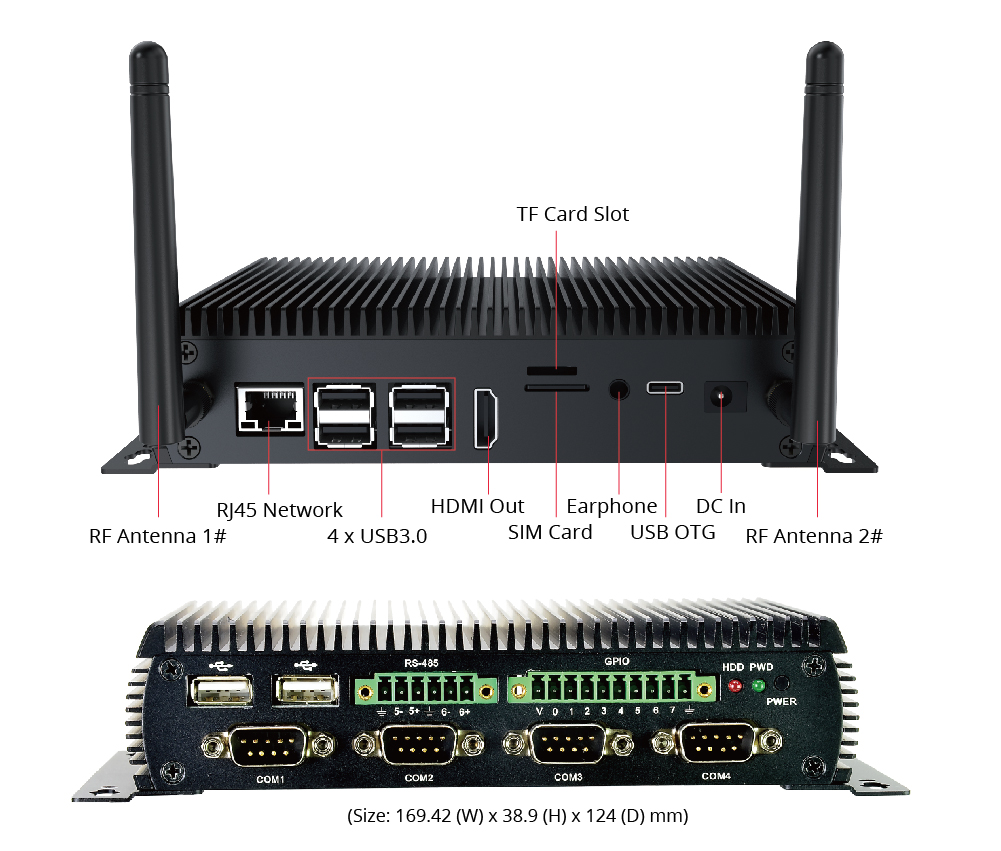

Fanless Industrial Box PC Based on Rockchip RK3399 CPU
Model:BPC-RK3399-02
Features：
Model: BPC-RK3399-02
Recommended Products: Embedded Box PC with RS-232/485, Dual Display and GPIO Function
Main Features:
· RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53
· 2GB/4GB memory, 32GB eMMC5.1 (8GB/16GB/64GB optional)
· Android 8.1, Ubuntu 20.04 operating system
| System | |
| CPU | RK3399 |
| Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.4GHz | |
| GPU | Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 |
| Memory | Onboard 4GB, 2GB optional |
| Storage | eMMC5.1 32GB Default, 8GB/16GB/64GB optional |
| Operating System | Android 8.1, Ubuntu 20.04 |
| Connectivity | |
| LAN | 1 x RJ45 RTL8211E |
| WiFi | 1 |
| Bluetooth | 1 |
| External Connectors | |
| USB Host | 4 x Type-A USB3.0, 2 x Type-A USB 2.0 |
| SIM Card Slot | 1 x SIM |
| TF Card Slot | 1 x TF card slot |
| USB OTG | 1 x Type-C USB |
| Earphone | 1 x φ3.5mm Earphone out, with Mic in |
| RS-232 COM | 4 |
| RS-485 | 2 |
| GPIO | 8 |
| Internal Connectors | |
| Mini PCIe | 1 x Mini PCIe Slot For 4G Module |
| Display | |
| HDMI | 1 |
| Power | |
| Power Input | 12V/2A DC IN |
| Mechanical & Environmental | |
| Enclosure Material | Stainless Steel + Aluminum |
| IP Rating | IP69K |
| Dimensions | 169.42 x 38.9 x 124mm (W x H x D) |
| MB Size | 145 x 102mm (L x W) |
| Gross Weight | 780 grams |
| Temperature | Industrial: -20~70℃ |
| Relative Humidity | 10 to 90 % |
RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53
Android 8.1, Ubuntu 20.04 operating system
2GB-4GB memory, 8GB-64GB eMMC5.1
