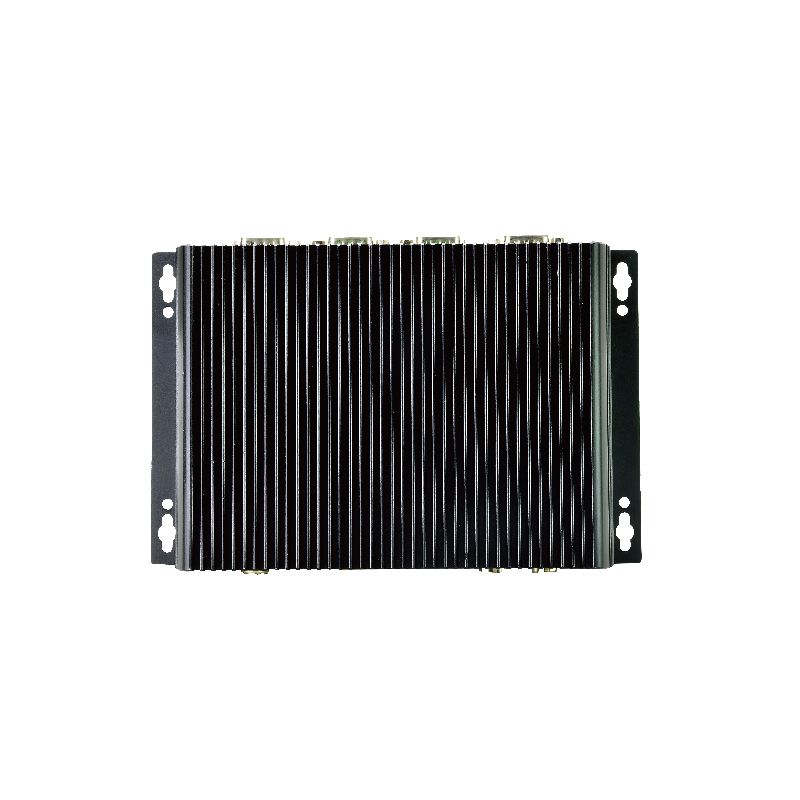

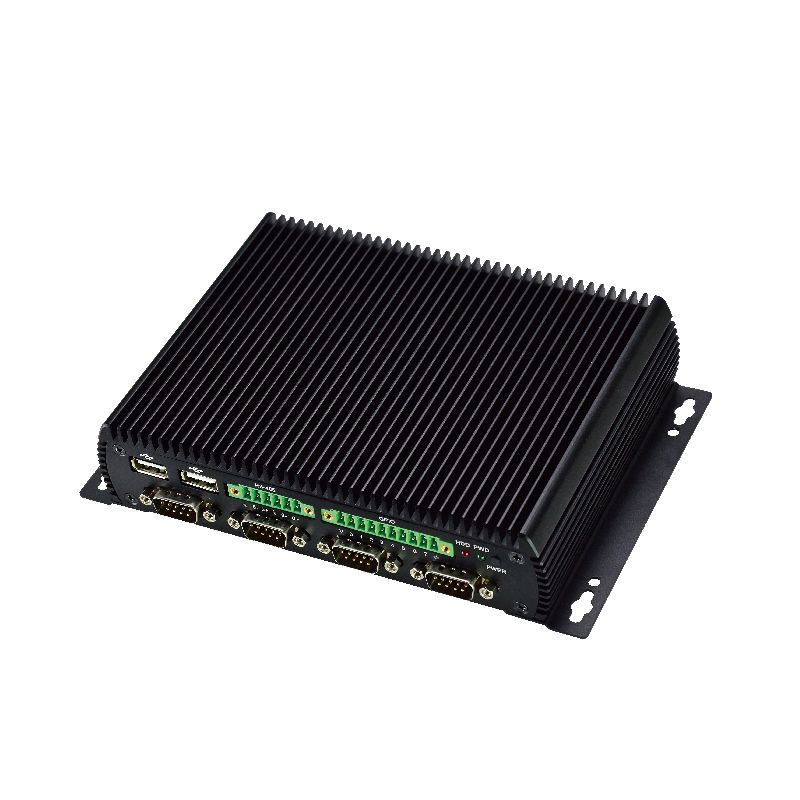

Embedded Box PC Based on NXP i.MX 6 Series CPU
Model: BPC-iMX6Se-01
Recommended Products: Fanless Industrial Box PC based on Rockchip RK3399 CPU
Description:
The BPC-iMX6Se-01 is a small form factor fanless embedded PC based on NXP i.MX 6 Series processors. The system supports one Gigabit LAN, four RS232, one RS485, eight port GPIO, and also a wide array OS options including Yocto embedded Linux, Ubuntu Linux and Android, making it well-suited to a range of in-field applications. The rich I/Os and slim fanless design fits perfectly for digital signage, kiosk, network security, IoT gateway and other industrial computer applications.
Main Features:
• NXP i.MX 6DualLite 1.0Ghz (NXP i.MX 6Solo/NXP i.MX 6Dual/NXP i.MX 6Quad optional)
• Onboard 1GB DDR3 RAM and 8G eMMC (default)
• Support 1 x Mini PCIe, 4 x RS232, 1 x RS485, 8 x GPIO
• Support dual display: VGA/HDMI
• Supports Yocto 2.5.2, Ubuntu 16.04, Android 9.0
• Slim vent-hole free with dustproof and fanless aluminum enclosure
| System | |
| Processor | NXP i.MX6 DualLite 1.0GHz (Default) |
| Also support NXP i.MX6 Solo/NXP i.MX6 Dual/NXP i.MX6 Quad | |
| Architecture | ARM Cortex-A9 |
| Memory | Onboard 1GB DDR3(Default), up to 2GB |
| Storage | eMMC 8GB Default, 16GB/32GB(option) |
| Operating System | Yocto 2.5.2, Ubuntu 16.04, Android 9.0 |
| Connectivity | |
| LAN | 1 x RJ45 AR8033 |
| WiFi | 1 x RTL8188WEUS |
| Bluetooth | 1 x RTL8723 (optional) |

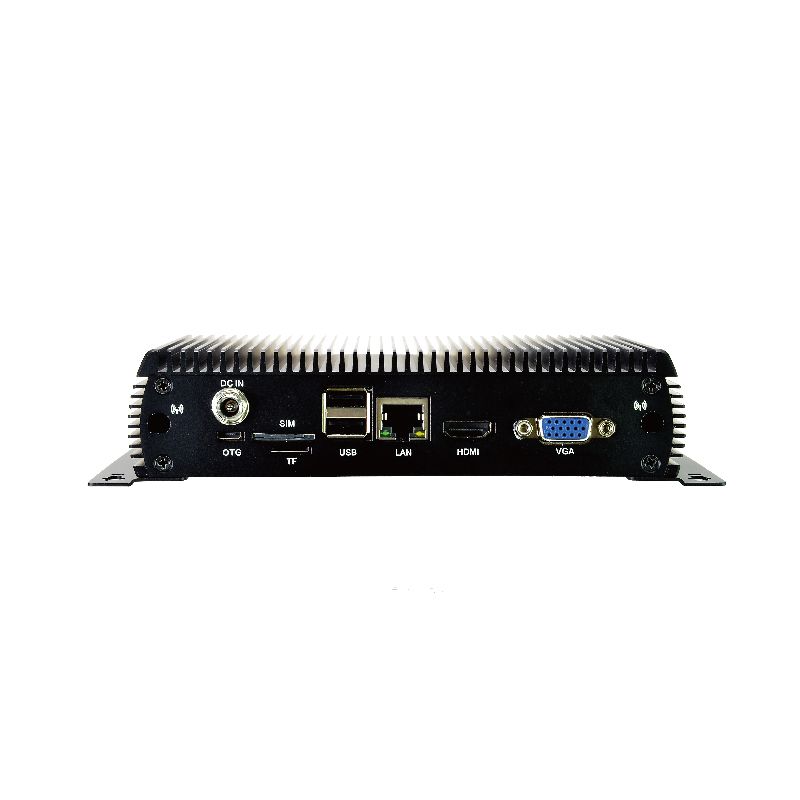

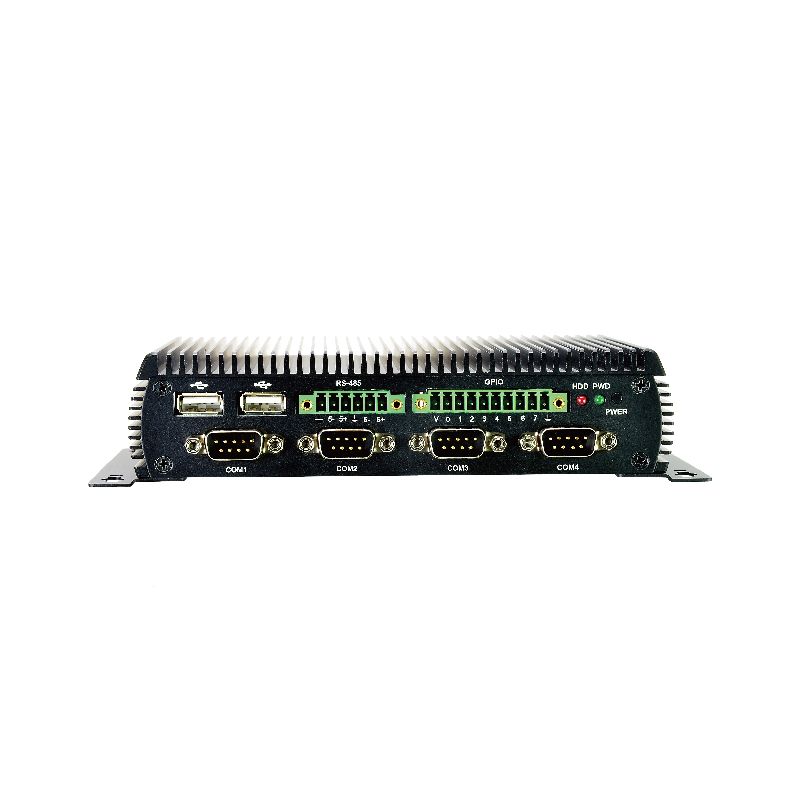

| External Connectors | |
| USB Host | 4 x Type A USB2.0 |
| SIM Card Slot | 1 x SIM |
| SD Card Slot | 1 x microSD card slot |
| USB OTG | 1 x Micro USB |
| RS-232 COM | 4 |
| RS-485 | 1 |
| GPIO | 8 |
| Internal Connectors | |
| SATA | 2 |
| Mini PCIE | 1 full length mini PCIE |
| Display | |
| VGA | 1 |
| HDMI | 1 |
| Power Supply | |
| Power Input | 12V DC |
| Power Consumption | Depending on Configuration |
| Mechanical & Environment | |
| Enclosure Material | Stainless Steel + Aluminum |
| IP Rating | IP69K |

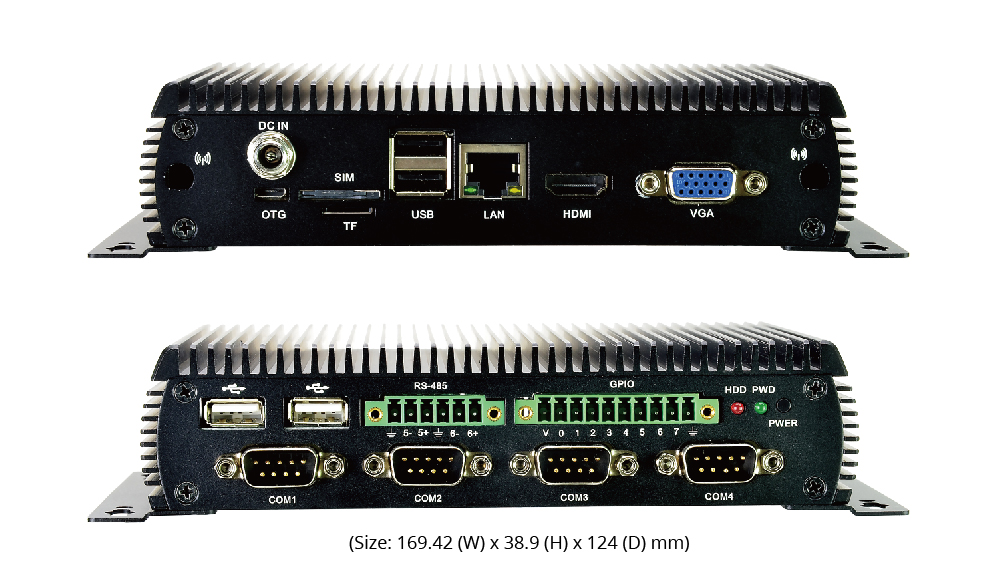

| Dimensions | 169.42 (W) x 38.9 (H) x 124 (D) mm |
| Size | 146mm x 102mm (L x W) |
| Gross Weight | 780 grams |
| Temperature | Industrial: -20° to +70° C |
| Relative Humidity | 10 to 90 % |
| MTBF | >50 000 Hours |
| Shock | 15G half-sine 11 ms duration |
| Vibration | 1 Grms random 5-500Hz hr/axis |
| Certification | Compliant with CE / FCC / RoHS / REACH directives |
NXP i.MX 6DualLite 1.0GHz (i.MX 6Solo/i.MX 6Dual/i.MX 6Quad optional)
Supports Yocto 2.5.2, Ubuntu 16.04, Android 9.0
Onboard 1GB-2GB DDR3 RAM and 8GB-32GB eMMC
