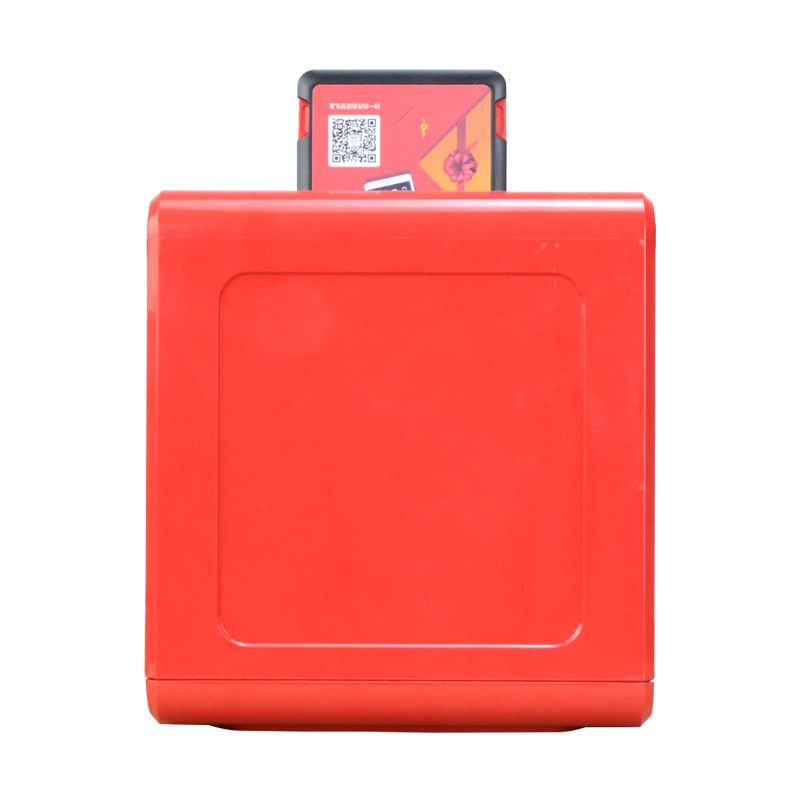

Shared Power Bank Based on STM32G0B1VC Arm Cortex-M0+ 32-bit MCU
Model: BPC-STM32-01
Recommended Products: Power Bank Machine with Restaurant Orders and Advertising Package, Shared Power Bank and Advertising Machine for Shopping Malls
Main Features:
· STM32G0B1VC, Arm Cortex-M0+ 32-bit MCU, 64MHz
· 1 x 4G module for communication
· 10 x 5000mAh portable batteries
Description:
The shared powerbank station is designed under STM32G0B1VC Arm® Cortex®-M0+ 32-bit MCU. It has 10 battery bay, allowing up to 10 x 5V/500mA batteries charging at the same time. It connects with the cloud server, and transmit information (including locataion status of the powerbank station) by 4G module. Polyhex provides the design and customization service for motherboard, outer chassis, LOGO and operation system.
Embedded Motherboard Inside: EMB-STM32-YCB (couldn't be sold alone)
The motherboard is customized for the shared power bank station, appling STM32F103 chipset and ARM Cortex-M3 MCU. It connects with the controling cloud server and receives location information by 4G module.
| System | |
| Chipset | STM32G0B1VC, Arm® Cortex®-M0+ 32-bit MCU, 64MHz |
| Power Bank | |
| Power Bank Bay | 10 x battery bay |
| Power Spec for Power Bank | Up to 5V/2A output, intelligent switch |
| Charging Spec for Power Bank | 1. Support up to 4 x 5V/2A charging in the meantime |
| 2. Support up to 10 x 5V/500mA charging in the meantime | |
| Communication | 1 x 4G module |
| Indicator | 10 x status LED indicator |
| Power Button | 1 x power button |
Motherboard Specification:
| System | |
| Chipset | STM32F103, ARM Cortex-M3 MCU, main frequency 72MHz |
| I/O Interfaces | |
| 4G | 1 x 4G module |
| KEY | 10 x KEY |
| LED | 10 x LED |
| Powerbank Port | 10 x I2C |
| Electromagnet Driver Port | 10 x electromagnet driver port |
| 5VDC OUT | 10 x 5V OUT, supporting up to 2A current-limiting output protection |
| GPIO | 5 x GPIO |
| Power Supply | |
| RTC | 1 x RTC power input |
| 5V IN | 1 x 5V/10A DC IN |
| 12V IN | 1 x 12V/2.5A DC IN |
| Mechanical | |
| Size | 270 x 42mm |
