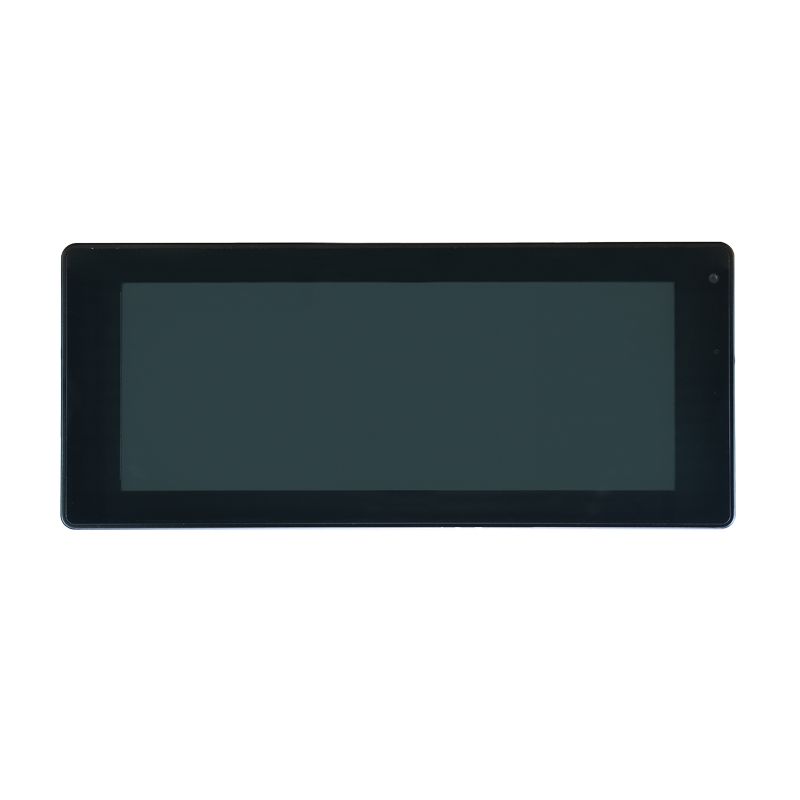

Vehicle Control Panel PC with 8.8 Inches Touch Screen
Model: PPC-RK3288-0802
Recommended Products: Locomotive Control Panel Based on NXP i.MX 8M Mini CPU
Description:
The PPC-RK3288-0802 panel PC utilizes the Quad-Core Rockchip RK3288 processor, onboard 4G RAM and 32G Flash, making it energy efficient while strong enough for offering multimedia-capable power. The PPC-RK3288-0802 features a bright and beautiful, industrial grade LED backlit panel with luminance to 500 nits. This eye-catching display offers a narrow, capacitive touch screen panel that can be used with ease while operating in multiple industrial applications. Featuring a slim and durable aluminum chassis with an IP65-rated front bezel, the PPC-RK3288-0802 is sleek enough for customer-facing applications, yet rugged enough for vehicles.
Main Features:
• RK3288 ARM Cortex-A17 Quad Core CPU
• Onboard DDR3 1066MHz 4GB memory and 32GB NAND flash (default)
• Multi-point capacitive touch panel
• High luminance of 500 nits
• Low power consumption, fanless design
• Support Android 5.1, Android 7.1 (optional) and Debian 9 (optional)
| System | |
| Processor | RockChip RK3288 1.8GHz |
| Memory | Onboard 4GB DDR3 RAM |
| Storage | Onboard 32GB NAND Flash |
| Graphic | ARM Mali-T764 GPU core |
| OS support | Support Android 5.1, Android 7.1 (optional), Debian 9 (optional) |
| Display & Touch Panel | |
| Screen Size | 8.8 Inch |
| Screen Type | 8:3 |
| Display Resolution | 1280 x 480 pixels |
| Display Color | RGB-stripe |
| Luminance | 500 nits |
| Contrast Ratio | 1000:1 |
| Backlight | WLED |
| Touch Panel | Multi touch Capacitive Panel |
| I/O Interfaces | |
| Ethernet | 1 x RJ45, RTL8211E GbE Molex 43650-0400 4pin |
| LCD Interface | LVDS |
| USB | 1 x OTG |
| Camera | 5M MIPI Camara |
| Audio | Line-out 3.5mm and Molex 43650-0500 |
| Ambient Light Sensor | BH1751FVI |
| Connector | Molex 43650-0500 5pin (for power & audio) |
| Molex 43650-0400 4pin (for Ethernet) | |
| Power Supply | |
| Power | DC 12V Molex 43650-0500 5 pin |
| Mechanical | |
| Front Bezel | Aluminum |
| Back Chassis | Aluminum |
| Cooling System | Fanless design |

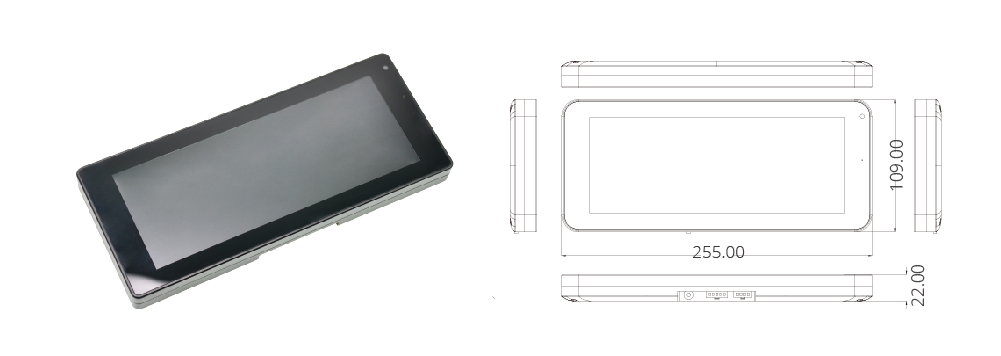

| Dimension | 255(L) x 109(W) x 22(H)mm |
| Gross Weight | 2.5kg |
| Environment | |
| Operating Temperature | -25ºC~70ºC (14ºF~122ºF) |
Quad Core RockChip RK3288 1.8GHz CPU
Android 5.1, Android 7.1 (optional) and Debian 9 (optional)
4GB DDR3 1066MHz memory and 32GB NAND flash
