Access Controlling Box PC Based on NXP i.MX 6UltraLite CPU
Model:BPC-iMX6UL-01
Features：
Model: BPC-iMX6UL-01
Recommended Products: Access Control System Panel PC based on RK3288 CPU, Temperature Measuring Device for Intelligent Access Control
Main Features:
· NXP i.MX 6UltraLite ARM Cortex®-A7 CPU, i.MX 6ULL(optional)
· 256MB DDR3(128MB/512MB/1GB optional), 4GB eMMC(8GB/16GB/32GB optional)
· Support Buildroot 2019.02.4, Yocto 2.5.2 operating system
| System | |
| CPU | NXP i.MX 6UltraLite ARM Cortex®-A7 (i.MX 6ULL optional) |
| Memory | 256MB DDR3 (128MB/512MB/1GB optional) |
| Storage | 4GB eMMC (8GB/16GB/32GB optional) |
| OS | Buildroot 2019.02.4, Yocto 2.5.2 |
| I/O Interfaces | |
| Functions | 1 x RJ45 10/100M |
| 4 x Wiegand input, supporting 26/34/37bit decoding | |
| 4 x RS485 | |
| 1 x CAN bus | |
| LED indicator IO output | |
| 4 x BEEP doorbell IO output | |
| 4 x HOLD door lock IO output | |
| 4 x 12V DV output, each up to 400mA@12V | |
| 4 x electric lock control output | |
| Mechanical | |
| Power | 12V 2A DC input |

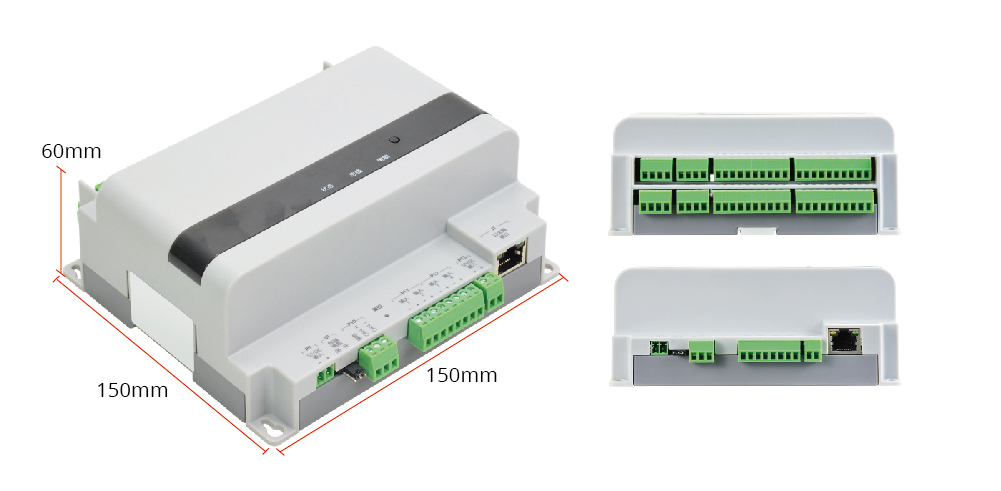

| Size | 15 x 15 x 6cm |
NXP i.MX 6UltraLite ARM Cortex®-A7 CPU, i.MX 6ULL(optional)
Buildroot 2019.02.4, Yocto 2.5.2 operating system
128MB~1GB DDR3, 4GB~32GB eMMC
