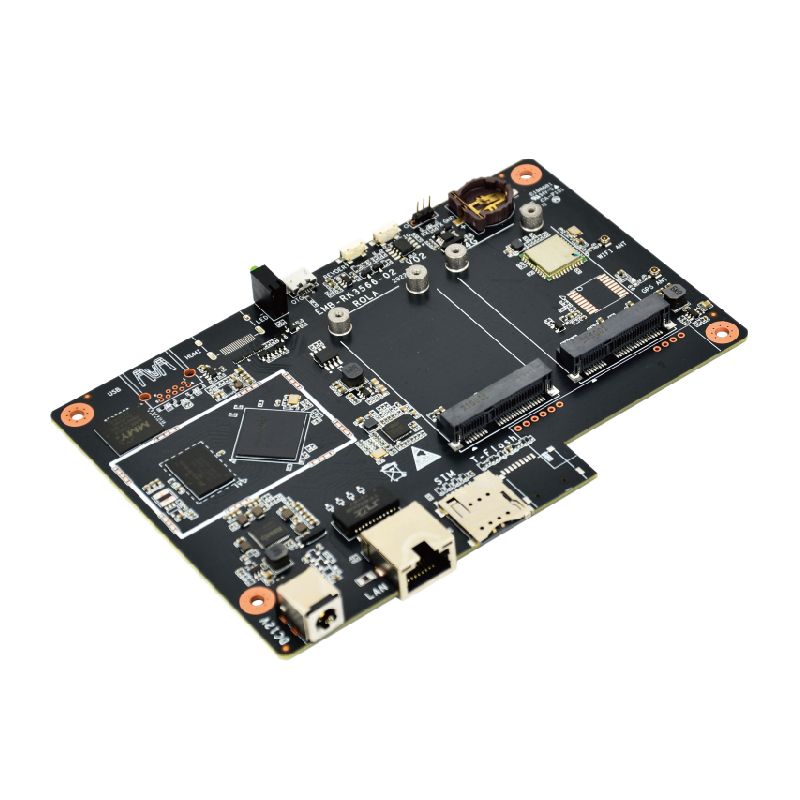

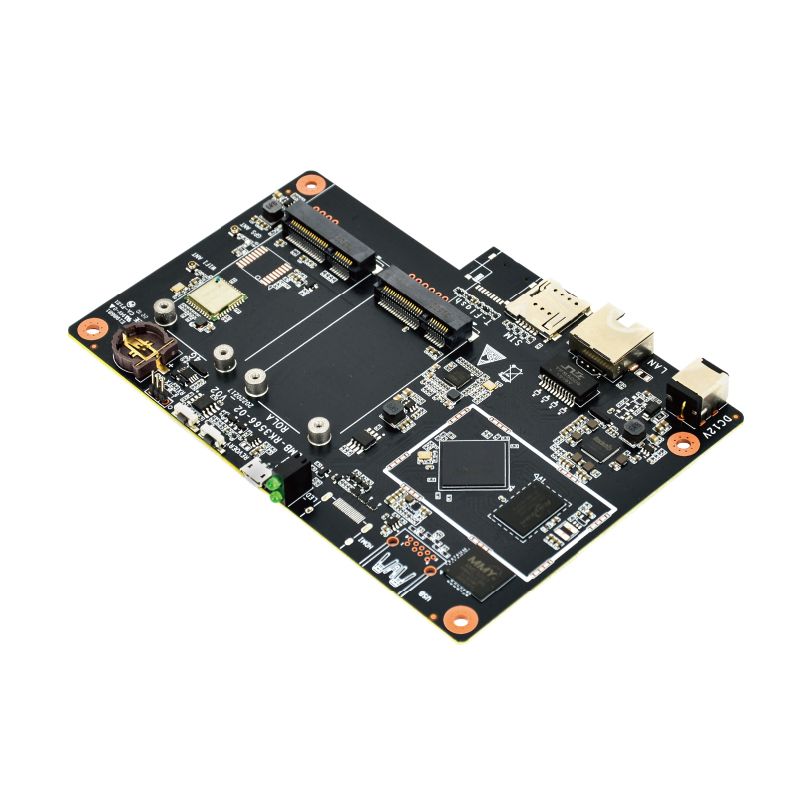

Embedded Motherboard Based on Rockchip RK3566 4 x Cortex-A55 CPU
Model:EMB-RK3566-02
Features：
Model: EMB-RK3566-02
| System | |
| CPU | Rockchip RK3566 Quad-core ARM Cortex-A55 1.8GHz |
| Memory | 4GB LPDDR4 |
| Flash | 64GB eMMC |
| OS | Ubuntu 20.04 |
| Communication | |
| RJ45 | 1 x 100/1000M LAN |
| WIFI & Bluetooth | WIFI 2.4G, BT4.2 |
| LoRa | 1 x LoRa Gateway, support 470MHz/868MHz/915MHz |
| 4G | 1 x 4G Module |
| GPS | 1 x GPS Module |

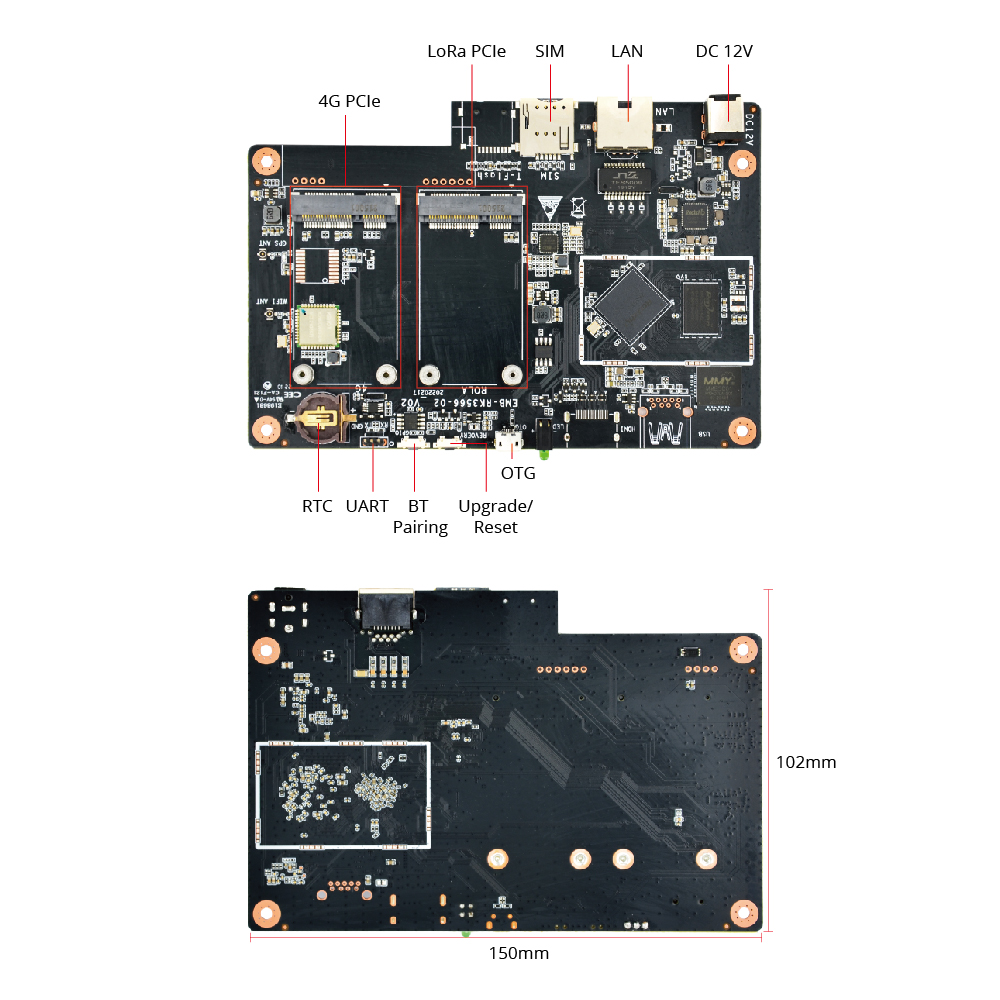

| I/O Interfaces | |
| USB | 1 x USB 3.0 (optional), 1 x Micro USB (OTG) |
| Serial Port | 1 x TTL DEBUG |
| PCIe | 1 x Mini PCIe (4G), 1 x Mini PCIe (LoRa) |
| HDMI | 1 x HDMI OUT (optional) |
| Key | 1 x Bluetooth Pairing Key, 1 x Upgrade/Reset Key |
| SIM Slot | 1 x SIM Slot |
| TF Slot | 1 x TF Slot (optional) |
| RTC | 1 x RTC |
| Power Supply | |
| Power Input | 1 x 12V DC IN |
| Mechanical | |
| Dimension | 150mm x 102mm x 11.8mm |
Rockchip RK3566 Quad-core ARM Cortex-A55 1.8GHz
4GB LPDDR4, 64GB eMMC
Ubuntu 20.04 operating system
