Embedded Motherboard Based on Rockchip RK3576 Octa-core CPU
The R3576-01 is a commercial-grade single-board computer based on the Rockchip RK3576, which provides comprehensive system software development and rich and scalable I/O interfaces for rapid application in intelligent robotics, edge computing, Internet of Things and security.
Main Features：
· Powerful Performance: Built for demanding commercial or consumer applications, R3576-01 boasts a quad-core ARM Cortex-A72 CPU up to 2.2GHz, a quad-core ARM Cortex-A53 CPU up to 1.8GHz and 2GB/4GB/8GB LPDDR4 RAM. This combination ensures smooth operation even for complex processing tasks.
· Commercial-grade Build: Designed for harsh environments, R3576-01 features commercial-grade components and a wide CPU temperature range of 0°C to 70°C.
· Rich Connectivity: R3576-01 offers a comprehensive range of connectivity options, including Gigabit Ethernet, 2.4GHz & 5GHz Wi-Fi 6, Bluetooth 5.4, high-speed USB 3.0, and PCIe support. This allows for easy connection and control of various peripherals.
System | |
Processor | RK3576 , 4 x Cortex-A72 + 4 x Cotex A53 up to 2.2GHz, comes with an integrated neural processing unit (NPU) that delivers up to 6 TOPS (RKNN), and with GPU G52MC3 |
Memory | 1) Default: 2GB LPDDR4 (4GB/8GB optional) 2) 2GB/4GB/8GB/16GB LPDDR4X optional |
Storage | 1) Default: Micro SD Card (8GB/16GB/32GB/64GB/128GB/256GB optional) 2) Onboard eMMC (8GB/16GB/32GB/64GB/128GB/256GB optional) |
OS | Android 13, Debian 12, Yocto-L6.6.23 2._0.0 |
Boot | 1) Boot from Micro SD Card 2) Boot from eMMC |
Communication | |
Gigabit Network | 2 x Gigabit Ethernet Interfaces: 1 ) 1 x RJ45 with POE power supply (need POE M.2 40-Pin Double-Row Headers power supply module) 2 ) 1 x RJ45 |
Wi-Fi & BT | 2.4GHz & 5GHz Wi-Fi 6, BT 5.4，external Wi-Fi SMA antenna connector |
Video & Audio | |
HDMI | 1 x HDMI output with Type-A HDMI female |
MIPI CSI | 1 x MIPI CSI, support 4-lane, 24Pin 0.5mm Pitch FPC socket |
MIPI DSI | 1 x MIPI DSI, support 4-lane, 24Pin 0.5mm Pitch FPC socket |
Audio | 1 x 3.5mm headphone and microphone combo port |
DP | 1 x DP display support MST with Type-C |

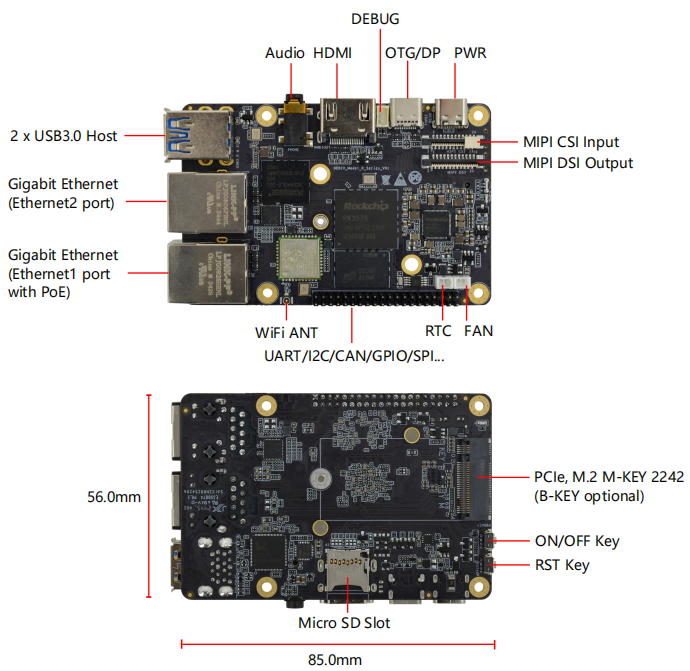

I/O Interfaces | |
USB | 2 x USB 3.0 Host with double layer Type-A 1 x USB 2.0 PWR with Type-C for DC 5V power input 1 x USB 3.0 OTG + DP DISPLAY support MST with Type-C |
M.2 | 1 x PCIe, M.2 M-KEY 2242 (B-Key optional) |
40-Pin Double-Row Headers | 1) Default: 3 x UART, 2 x SPI, 2 x I2C, 2 x CAN, 6 x GPIO, refer to " 2) 5V power supply, system reset, ON/OFF |
Slot | 1 x Micro SD slot |
RTC | 1 x RTC |
FAN | 1 x FAN |
Power Supply | |
Power Input | Default DC 5V/3A power input with Type-C interface |
Mechanical | |
Dimensions | 85.0mm x 56.0mm |
Weight | 72g |
Operating Temp. | 0°C to 70°C |
RK3576 4 x Cortex-A72+4 x Cotex A53 2.2GHz
6 TOPS NPU
2GB-16GB LPDDR4X, 8GB-256GB eMMC
