Embedded Motherboard based on RK3288 Quad Core CPU
Model: EMB-RK3288-03
Applied in: Access Control System Panel PC based on RK3288 CPU
Board Description:

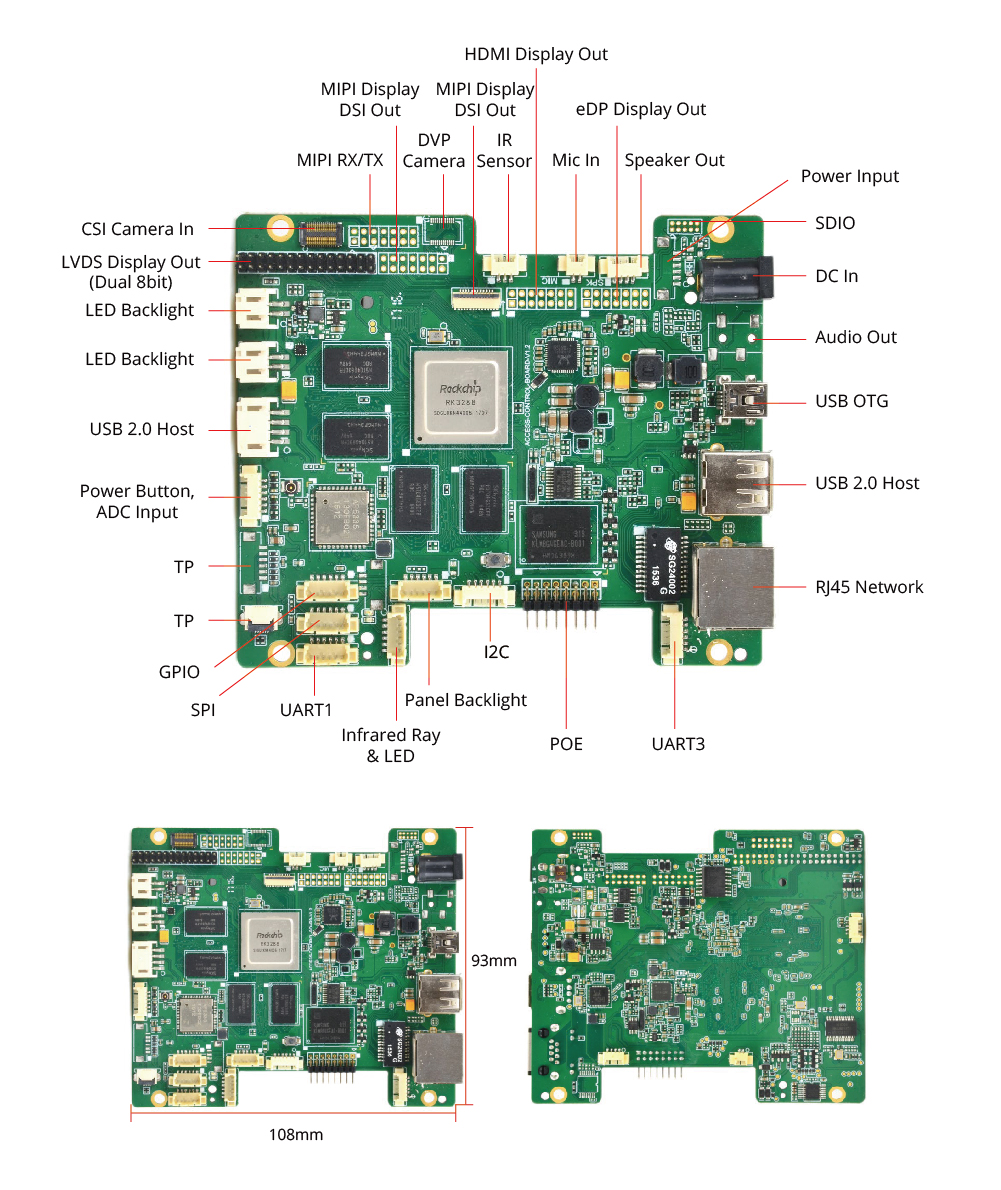

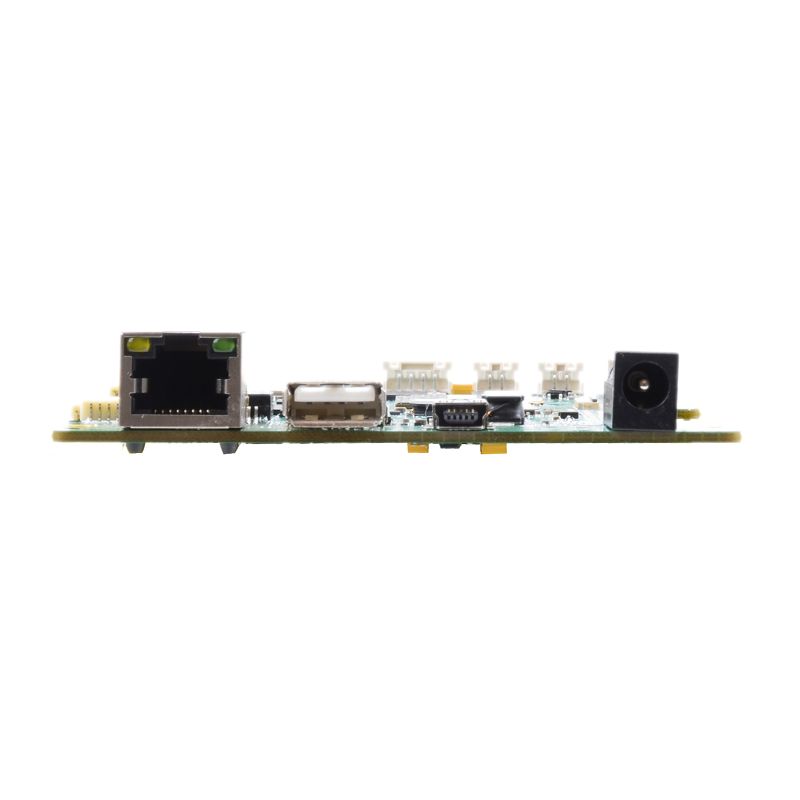

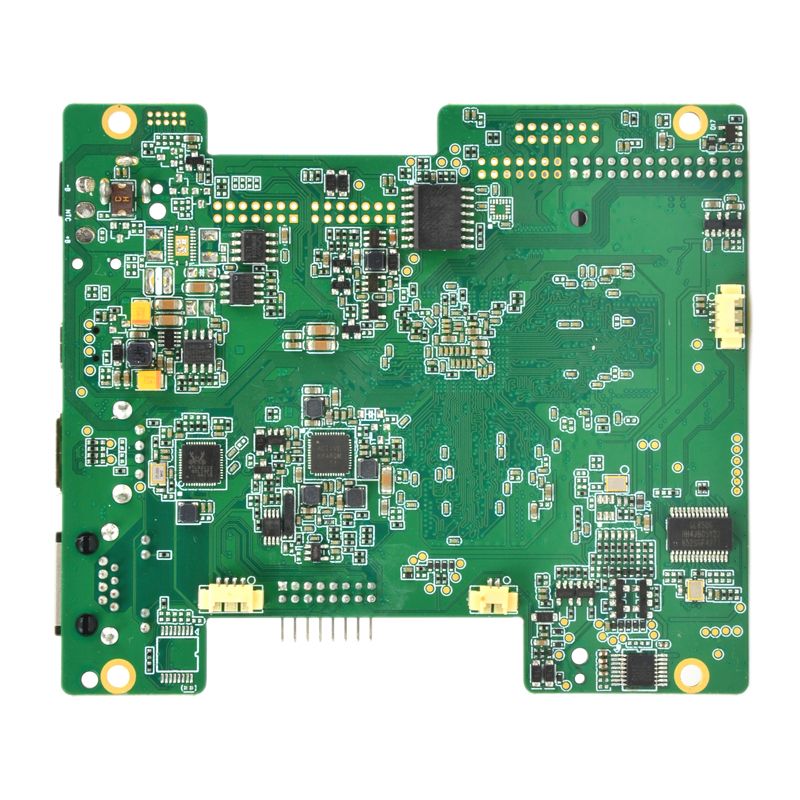

EMB-RK3288-03 is a customized motherboard for a smart face recognition access controlling system. It is onboard with RK3288 Cortex-A17 Quad Core CPU, 2GB DDR3 RAM and 32GB eMMC. The board is connected with a touch panel by MIPI port, a doorbell and door lock by GPIO port, and a camera for collecting face information. It is thin and small in size and with ultra-low power consumption.
Features:
• Onboard with Rockchip RK3288 Cortex-A17 Quad Core CPU
• Onboard 2GB DDR3 (up to 4GB)
• Onboard 32GB eMMC (default, 8GB, 16GB optional)
• Video out: 1 x MIPI DSI, support 1 x HDMI, 1 x eDP, 1 x Dual 8bit LVDS
• Video in: 1 x MIPI CSI, support 1 x 8bit Parallel CIF camera IN
• 1 x USB OTG, 2 x USB 2.0, 1 x POE, support 1 x LAN
• 4 x GPIO, 2 x RS232
• TP: 1 x IIC Interface Touch Panel
• Support Android 5.1, Android 7.1 (optional) and Debian 9 (optional)
| System | |
| CPU | Rockchip RK3288 ARM Cortex-A17 Quad Core CPU, Mali-T764 GPU core |
| Memory | 2GB DDR3 (Default, 1GB/4GB optional) |
| Flash | 32GB (Default)/8GB/16GB optional |
| OS | Android 5.1, Android 7.1 (optional) and Debian 9 (optional) |
| Communication | |
| LAN | 1 x Gigabit Ethernet |
| POE | 1 x POE |
| GPS | support GPS |
| Video & Audio | |
| Video Out | 1 x Dual 8bit LVDS (up to 2K supported) |
| 1 x MIPI DSI | |
| 1 x HDMI OUT | |
| 1 x EDP | |
| Video In | 1 x MIPI CSI |
| 1 x 8bit Parallel CIF Camera in | |
| Audio | 1 x Mic in |
| 1 x Speaker Lout , 1 x Speaker Rout | |
| 1 x Headphone L&R Out | |
| Other Interfaces | |
| SDIO | 1 x SDIO |
| OTG | 1 x USB OTG |
| USB 2.0 | 2 x USB 2.0 Host |
| TP | 1 x IIC Interface Touch Panel |
| LED Flash | 2 x LED Flash |
| SPI | 1 x SPI |
| GPIO | 4 x GPIO |
| RS 232 | 2 x RS232 |
| IR | 1 x IR |
| IIC | 2 x IIC |
| Power | |
| DC | 1 x 12V DC In |
| Mechanical | |
| Size | 108mm x 93mm x 1.2mm |
Rockchip RK3288 Cortex-A17 Quad Core CPU
Support Android 5.1 (Android 7.1 and Debian 9 optional)
1GB-4GB DDR3, 8GB-32GB eMMC
