Embedded Motherboard Based on Rockchip RK3399 CPU
Model:EMB-RK3399-01
Features：
Model: EMB-RK3399-01
Applied in: Fanless Industrial Box PC based on Rockchip RK3399 CPU
Main Features:
· Rockchip RK3399 CPU, dual-core Cortex-A72 up to 1.8GHz + quad-core Cortex-A53 up to 1.4GHz
· 4GB Double-Channel 64bit LPDDR4, 16GB eMMC5.1(8GB/32GB/64GB/128GB optional)
· Android 8.1, Ubuntu 20.04
| System | |
| CPU | RK3399 |
| Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.4GHz | |
| GPU | Mali-T860MP4 GPU, Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 |
| Memory | 4GB Double-Channel 64bit LPDDR4 |
| Flash | 16GB eMMC 5.1, Support 8GB/32GB/64GB/128GB |
| OS | Android 8.1, Ubuntu 20.04 |
| Communication | |
| RJ45 | 1 x 10/100/1000M LAN Port |
| WIFI&BT | WIFI2.4G/5G, BT4.0 |

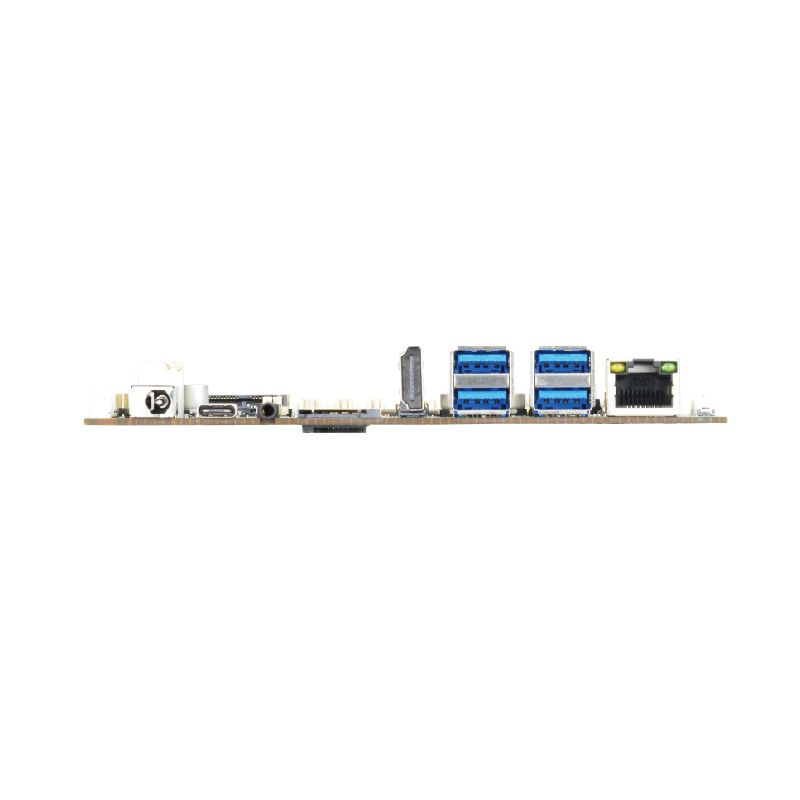

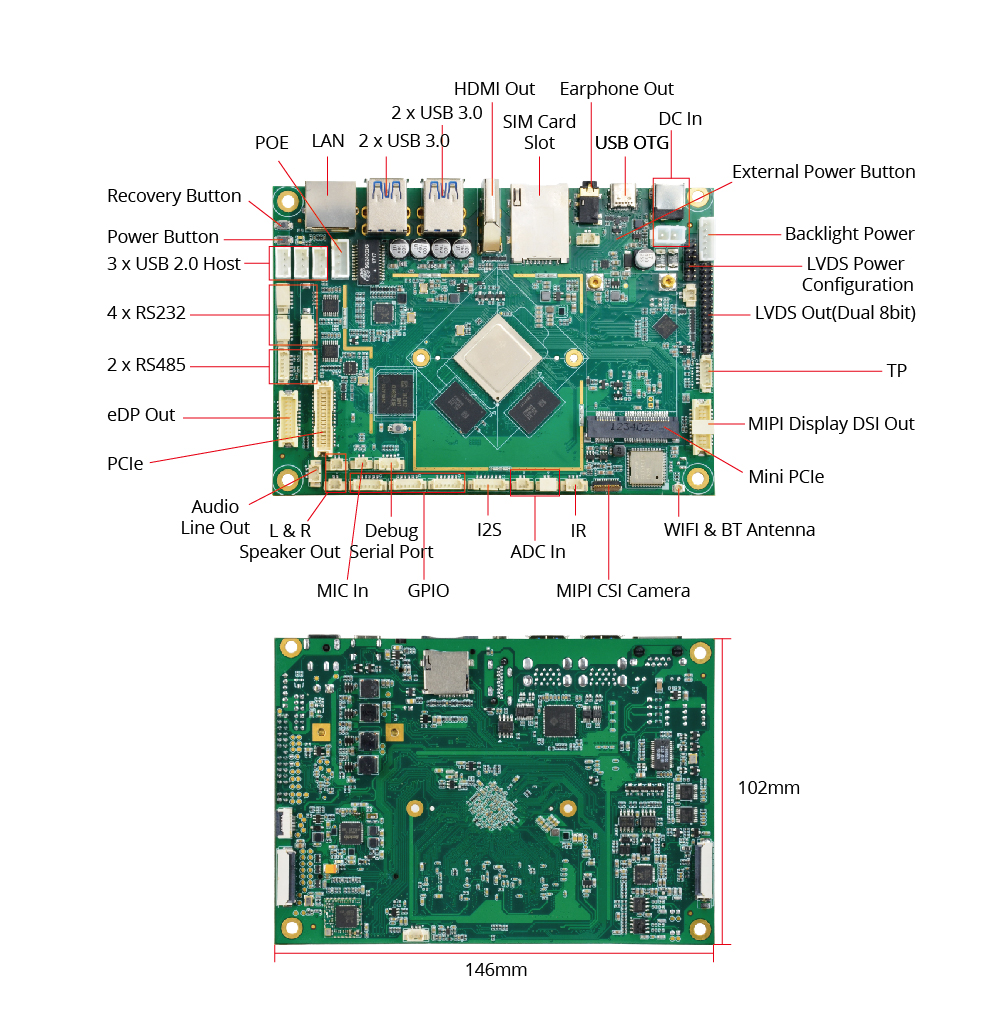

| I/O Interfaces | |
| USB OTG | 1 x USB OTG, Type-C Connector |
| Earphone | 1 x φ3.5mm Earphone Out, With Mic in |
| TF | 1 x TF Card Slot |
| SIM | 1 x SIM Card Slot |
| HDMI | 1 x HDMI Out |
| USB3.0 | 4 x USB3.0, USB A-Type Connector |
| Mini PCIe | 1 x Mini PCIe Slot For 4G Module |
| CSI | 1 x 4 Lane CSI MIPI In For Camera |
| DSI | 1 x 4 Lane DSI MIPI Out For LCD |
| TP | 1 x Touch Panel (I2C interface) |
| LVDS | 1 x Double Channel 8bit LVDS Out |
| eDP | 1 x 4 Lane eDP Out |
| Expansion | |
| Extended Interface | 1 x TTL UART for DEBUG |
| 4 x RS232 (Default) or TTL UART (Select) | |
| 2 x RS485 (Default) or RS232 (Select) or TTL UART (Select) | |
| 3 x USB 2.0 | |
| 2 x Speaker Out | |
| 1 x Audio In | |
| 12 x GPIO | |
| 4 x I2S In | |
| 2 x ADC In | |
| 1 x IR In | |
| 1 x PWM | |
| 1 x RTC | |
| 2 x KEY, Power Key and Recovery Key | |
| Power | |
| Power In | DC 12V/2A |
| Mechanical | |
| Size | 146mm x 102mm x 16mm |
Rockchip RK3399 CPU, dual-core Cortex-A72 + quad-core Cortex-A53
4GB Double-Channel 64bit LPDDR4, 8GB-128GB eMMC5.1
Android 8.1, Ubuntu 20.04
